Overview
| Information | 1G Ethernet PHY |
|---|---|
| Ethernet Bandwidth (Mbps) | 10, 100, 1000 |
| Interfaces | RGMII |
| MACSEC | No |
| 1588v2 | No |
| SyncE | Yes |
| EEE | Yes |
| Thermal Sensor | No |
| Min Temp (°C) | -40 |
| Max Temp (°C) | 85 |
| Package | QFN-40 |
| X x Y Package Dimension (mm) | 5 x 5 |
| Software Type | PHY Driver |
| Software Location | myMxL: mxl-8611x.c |

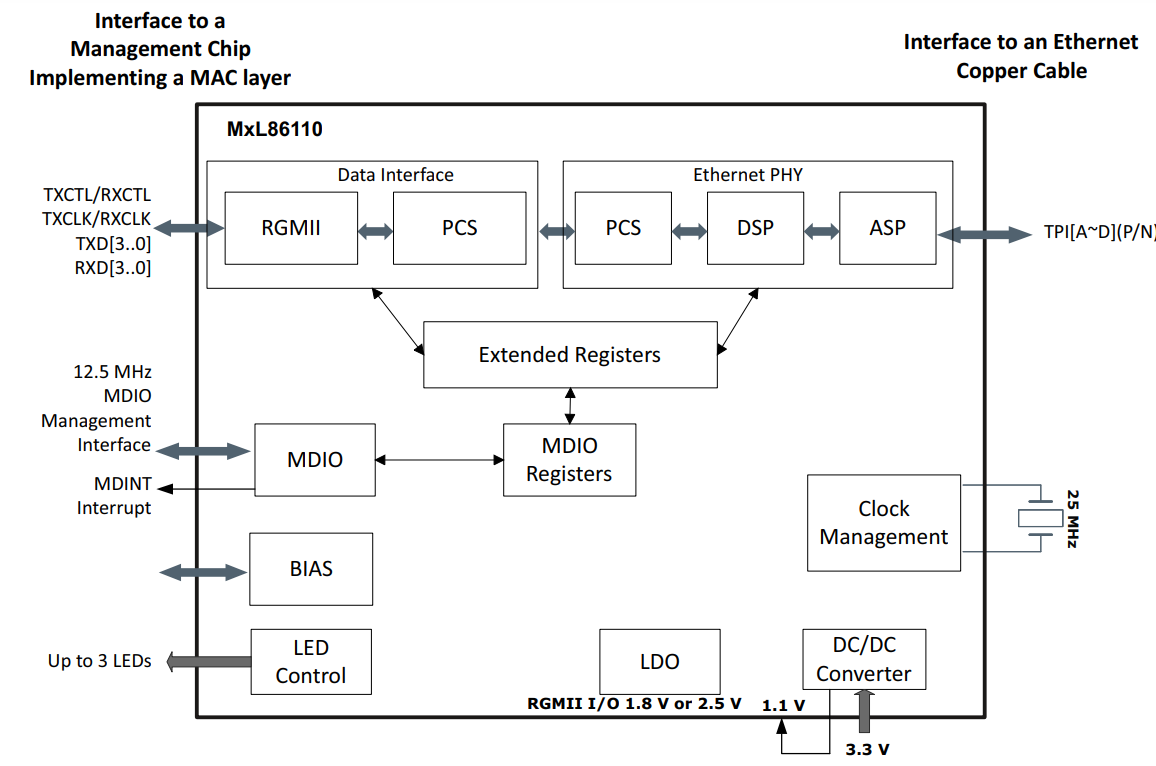

The MxL86110 is a state-of-the-art single port Ethernet Gigabit Copper PHYs with low power consumption, a small footprint and low RBOM. It supports 10BASE-Te, 100BASE-TX and 1000BASE-T on the twisted pair interface. 10BASE-Te and 100BASE-TX support half- and full-duplex and 1000BASE-T full-duplex mode of operation. It is available in both commercial and industrial temperature ranges. MxL86110 supports the RGMII MAC interface.
The MxL86110 has a low power consumption and supports Energy Efficient Ethernet (EEE) for 100BASE-TX and 1000BASE-T. Further power saving can be achieved using the Wake-on-LAN functionality and the no-link detection.
The device is available in a small QFN40 package and can be operated from a single 3.3V power supply using the integrated DC/DC converter with few external components.
Advanced applications are supported by the industrial temperature range variant (MxL86110I), SyncE support, and integrated SerDes.
- Supports
- 10BASE-Te, 100BASE-TX: Full and half-duplex
- 1000BASE-T: Full-duplex
- RGMII MAC interface
- Small QFN40 Package
- Low power of <400mW with external DC/DC
- Energy Efficient Ethernet for 100BASE-TX and 1000BASE-T
- No-link power saving
- Auto MDI/MDI-X
- Auto polarity detection and correction
- Internal DC/DC enables single 3.3V supply operation
- Supports 3.3V, 2.5V or 1.8V RGMII
- 25MHz XTAL or OSC clock input
- Three network status LEDs
- Cable diagnostic: Open, short, loop length
- Auto down-speed for bad cables or two pair loops
- 10k byte jumbo frame support
- Supports SyncE (Synchronous Ethernet)
- Industrial PC & Industrial Equipment
- Ethernet Switches, Routers, & Gateways
- Power-over-Ethernet (PoE)
- Base Stations & Controllers
- Consumer STB, DVD Player, VOIP Phone, Digital TV & Game Consoles
- NAS Equipment
- Printers & Office Equipment
Documentation & Design Tools
| Type | Title | Version | Date | File Size |
|---|---|---|---|---|
| Data Sheets | Ethernet PHY MxL86110C/MxL86110I Data Sheet | Rev1.1 | August 2023 | 2.7 MB |
| Product Flyers | MxL8611x Single Port Ethernet Gigabit PHYs Flyer | R01 | August 2023 | 1.3 MB |
| Product Brochures | Ethernet Brochure | R04 | November 2024 | 4.1 MB |
