Overview
| Information | 7-port 2.5G Ethernet Switch |
|---|---|
| Ethernet Bandwidth (Mbps) | 10, 100, 1000, 2500 |
| Ethernet Ports | 5 |
| Uplink Ports | 2 |
| Interfaces | XFI, USXGMII, SGMII |
| Supply Voltage (V) | 3.3/1.8/1.2/0.8 |
| MACSEC | - |
| 1588v2 | - |
| SyncE | - |
| Min Temp (°C) | 0 |
| Max Temp (°C) | 70 |
| Package | BGA-277 |
| X x Y Package Dimension (mm) | 12 x 12 |
| Software Type | DSA driver / Host API |
| Software Location | myMxL |
The MxL86252C is a highly integrated 2.5G Ethernet switch with five integrated 2.5GBASE-T PHYs. The switch has a low power consumption due to the high integration and advanced technology.
2.5GBASE-T works over the same Cat5e, Cat6 or Cat7 link segments as 1000BASE-T. Networks can benefit from the higher rate without the need to change cable installations.

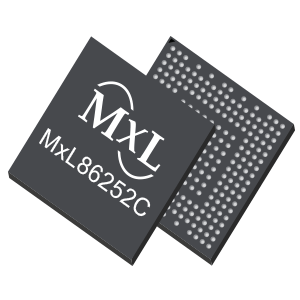

The part is packaged in a small 12 mm x 12 mm 277 ball BGA package.
- Wire-speed switching between all ports
- Two 10G XFI / USXGMII / SGMII uplink ports (MxL86252)
- VLAN, QoS, loop detection, ACL
- Five integrated 2.5GBASE-T PHYs
- 2.5GBASE-T, 1000BASE-T, 100BASE-TX and 10BASE-Te link rates
- Package PG-FCLBGA-277 12mm x 12mm, 0.628 / 0.700 mixed ball pitch
- Industrial temperature variant (MxL86252I)
- Variants for web-smart applications (MxL86252S)
- Standalone five port 2.5G switches with and without uplinks
- Unmanaged and web-smart switches
- External switches for gateway SoCs
- Industrial switches
