Overview
| Supported EVKs | DW920 |
|---|---|
| G.hn Version | Wave-2 |
| Physical Medium | Power line |
| Function | Baseband |
| Signal Channels | 2 |
| Supported MIMO Modes | Power line |
| Max Net Throughput | 1000Mbps (power line) |
| Supported G.hn Profiles | Power line MIMO 100MHz, Power line SISO 100MHz |
| Data Interfaces | RGMII (1G), SGMII (1G/2.5G) |
| Temperature Range (°C) | 0 to 70 |
| Information |

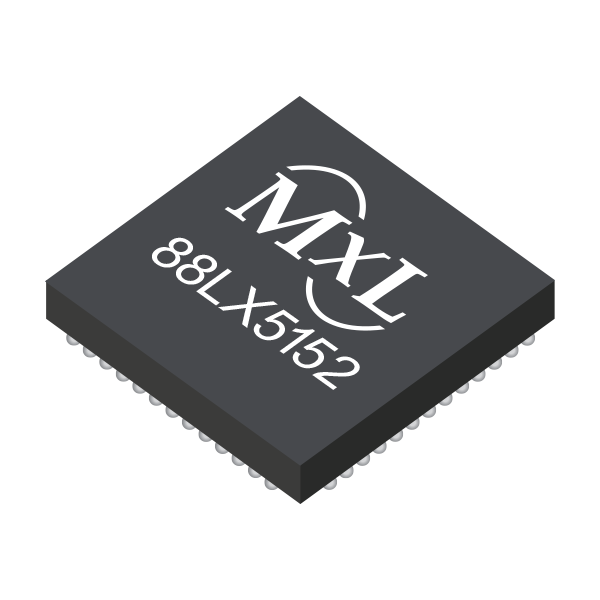

The 88LX5152 is a new-generation digital baseband (DBB) processor for powerline wireline communications using existing cables.
The 88LX5152 DBB is used in the DW920 G.hn Wave-w Powerline Networking Evaluation Kit.
- Highest performance PHY data rates
- Reduced BOM cost with integrated RAM
- Robust operation under noisy conditions
- AES-128 Security
- Low-power and sleep mode support
- Advanced and well-proved algorithms for Neighboring Domain Interference Mitigation (NDIM)
- Embedded TR-069 stacks
- Rich set of remote management interfaces
- Supported standards
- Code of Conduct on Energy Consumption of Broadband Equipment Version 5.0, European Commission
- ITU-T G.9960, G.9961, G.9962, G.9963, G.9964
- Powerline-to-Ethernet adapter
- Coax/phoneline-to-Ethernet adapter
- Multi-medium-to-Ethernet adapter
- Coax/powerline-WiFi extender
- G.hn Aggregation Multiplexer (GAM) for MDU phoneline access
Documentation & Design Tools
| Type | Title | Version | Date | File Size |
|---|---|---|---|---|
| Data Sheets | 88LX5152 and 88LX5153 Data Sheet | R05 | July 2020 | 661.7 KB |
| Product Flyers | G.hn Wave-2 Networking Products | May 2020 | 838.1 KB |
Visit your My Documents page to view all Technical Documentation & Design Tools.
